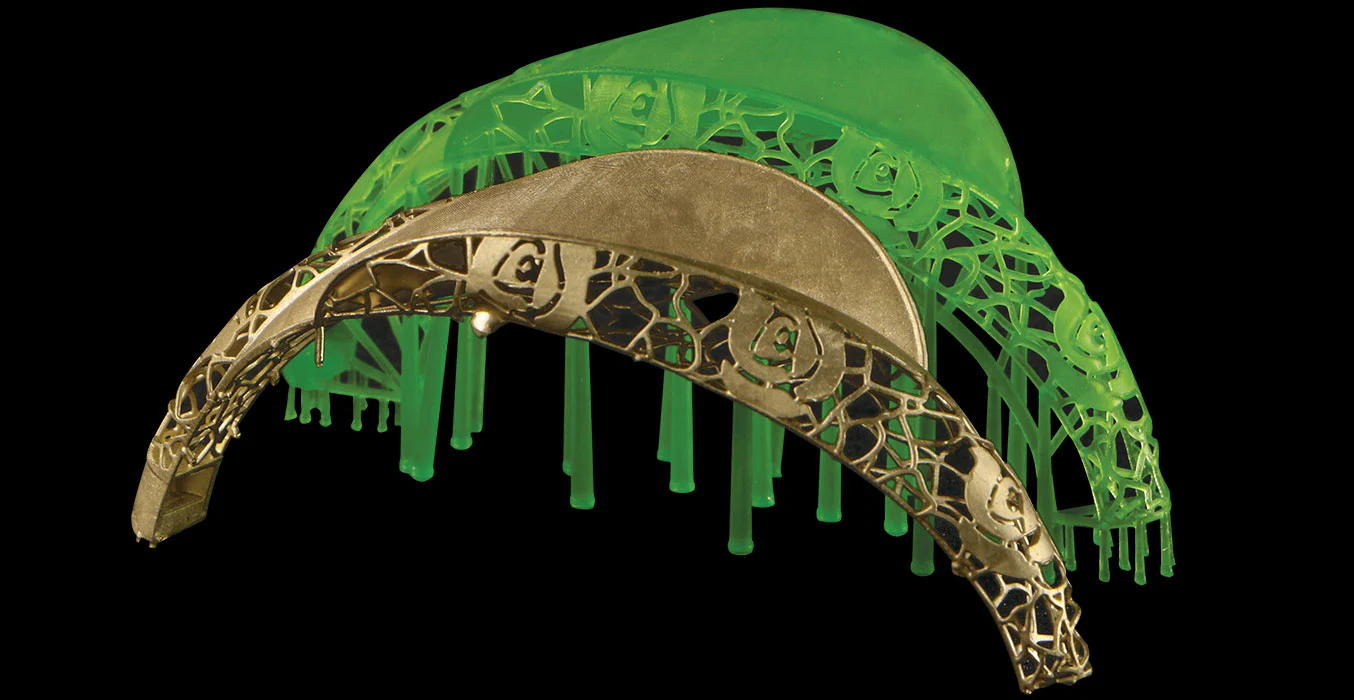

OPAQUE Jewellery Castable Resin About
Works with any DLP or LED/LCD 3d printer
Vitaresin Opaque is a special 100% ash-free castable resin formulated for DLP 3d printers to achieve excellent printing and direct casting quality in jewellery manufacturing. It has an opaque colour and provides excellent detail and surface quality in printing and casting.
Opaque Properties:
Excellent surface and print quality for DLP 3d printers
- 100% ash-free direct combustion for jewellery casting. You can easily cast 21k, 18k, 14k gold or silver
- Can be used for all types of jewellery, including engraving, smooth finish, high detail or filigree jewellery.
- No post-curing is required: Just wash with ethyl alcohol and air dry, then it is ready for casting.
- Standard burnout cycle use, no special processing required
- Not odorous or dangerous to health
- Suitable for 3D printers with 365nm/385nm and 405nm wavelength
This special resin can be used for all kinds of DLP projectors 3d printers. You can check the settings of our PowerCast Burn resin in our settings section and use it in the same way.
Hit
Provides accurate printing with details and can be printed below 10 microns and provides 0.1 mm thickness
Liquid
This resin has a low viscosity. It is easy to clean and provides high lubricity after cleaning
Safe and Odourless
Safe to use. No hazardous solvents or dangerous monomers
Compatible with 365,385nm and 405nm
You can use this resin with any printer with 365-385nm or 405nm light source
100% Ashless, Castable
Specially produced for direct casting. Evaporates with heat without leaving ash
Easy to Cast
Easy casting with investments such as Sherafine, Polyvest, Siladent, Bego, Nanovest or others
No Curing Required
No post UV curing is required after printing. Just wash and use
Our Apps
Work Flow Chart
Özellikler
| Material Feature | Value | Standard |
|---|---|---|
| Tensile Strength | 9.63 MPa | ASTM D638 |
| Flexural Strength | 11.43 MPa | ASTM D790-02 |
| Bending Modulus | 258.6 MPa | ASTM D790-02 |
| Bending Modulus | 60.8 | ASTM D2240 |
| Density | 1.08 g/cm3 at 23oC | ASTM D1475 |
| Viscosity | 480 - 500 mPa.s at 23oC | DIN 53211-4 |
| Color | Opaque Green |
Vitaresin Opak's Post-Processing
1- Washing
- After printing is complete, wash the part attached to the build plate with ethyl alcohol (>90%) or isopropyl alcohol (>90%) for 5 minutes.
- When washing, make sure that the alcohol completely covers the part.
- Use a brush to remove uncured resin if necessary.
- Do not over wash, it may cause distortion in the dimensions of the part.
2- Drying
- Use an air compressor to dry the washed part.
- Make sure the part is dry and the uncured resin is completely removed.
- If there is still uncured resin left on the part, wash with fresh alcohol and dry again.
3- Part Disassembly
- Remove the printed part from the build plate using an engraving tool. Be very careful not to damage your hand and the model.
- Store the Vitaresin Opaque bottle in a dark and moisture-free place at room temperature (20-24 °C).

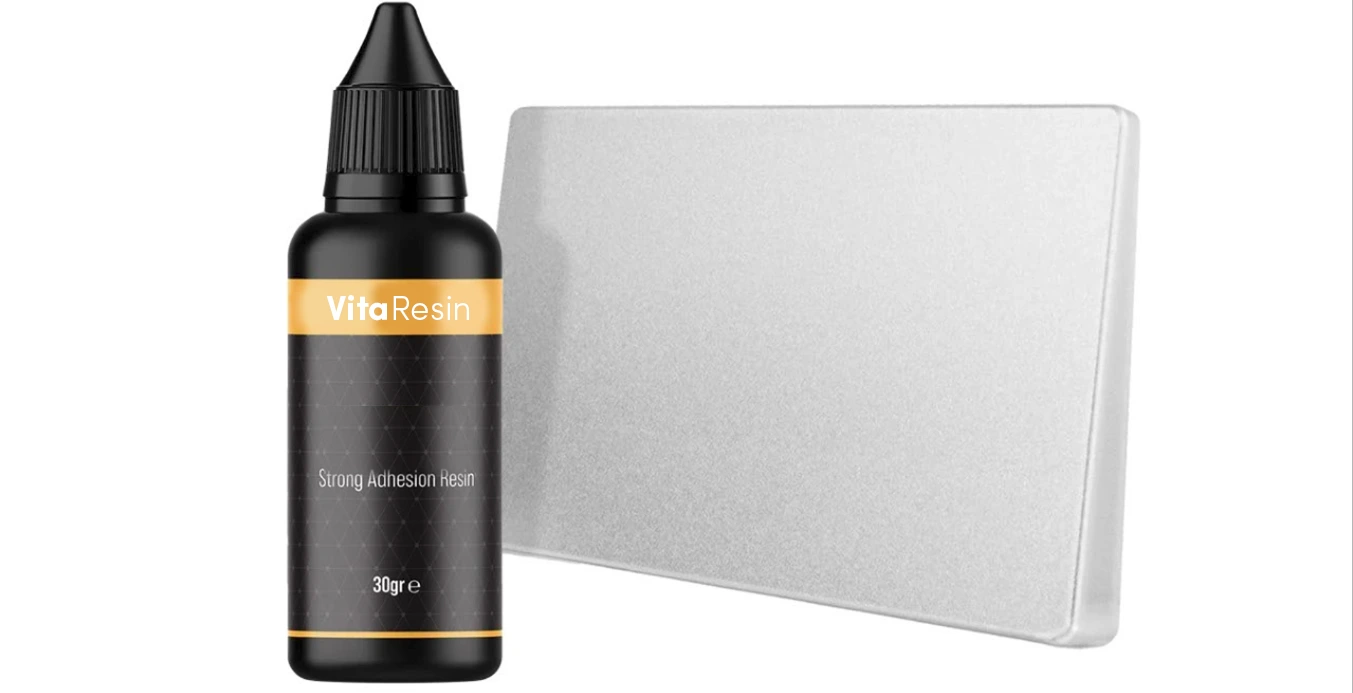

About Primer Resin Strong Adhesion
Vitaresin is a resin with very strong adhesion properties and designed to be used for all LCD, DLP and SLA technology printers with adhesion problems.
