WAX Castable Resin About
Works with any DLP or LED/LCD 3d printer

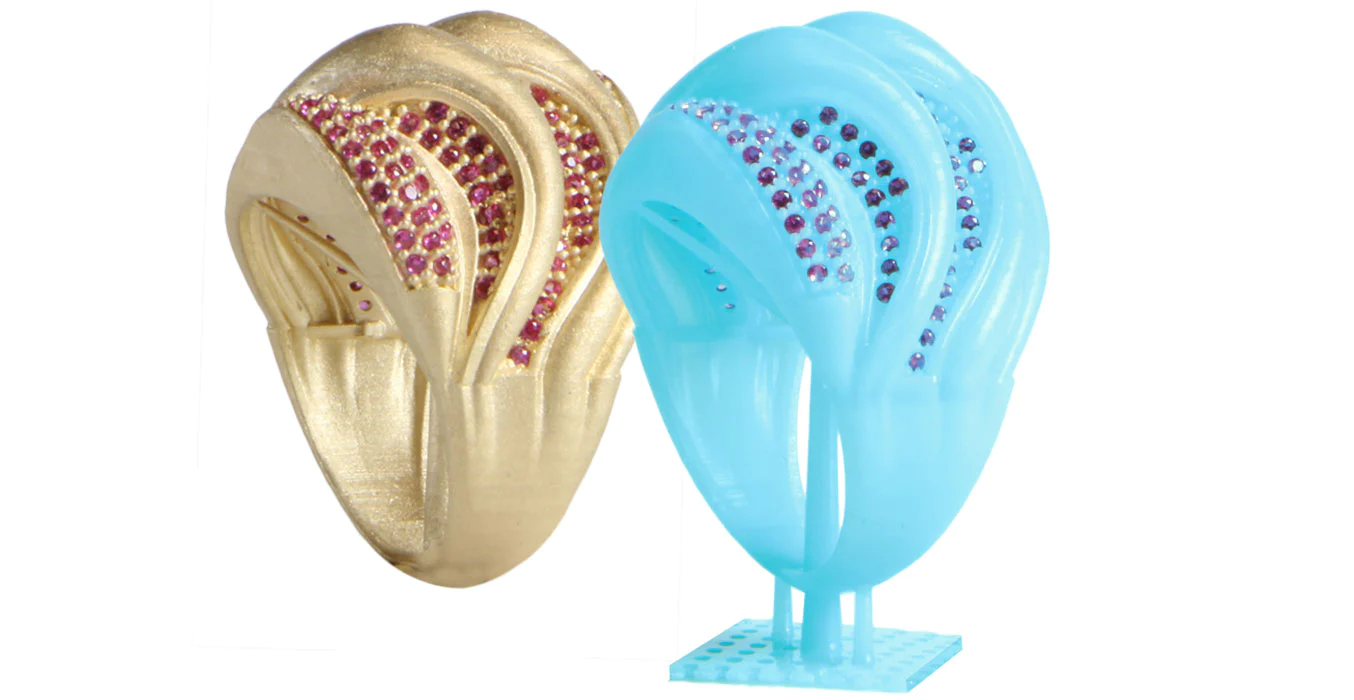

Vitaresin WAX is a special wax castable resin for 3d printers that is very similar to wax. It is used for jewellery casting and especially for stone-set models and surface models.
This resin has 100% ashless combustion and ensures the highest quality direct casting using a standardised combustion cycle.
- Specially designed to easily set stones in the printed model
- Achieve perfectly smooth surfaces even for jewellery with large surfaces
- Same as beeswax properties and texture
- 100 Ashless incineration for direct casting
This special resin can be used for all types of DLP or LED curing 3d printers. It has fast curing properties depending on the 3d printer used.
- Fast curing properties for fast printing
- Suitable for 3D printers with 365nm/385nm and 405nm wavelength
Safe and Odourless
Safe to use. No hazardous solvents or dangerous monomers
Compatible with 365,385nm and 405nm
You can use this resin with any printer with 365-385nm or 405nm light source
100% Ashless, Castable
Specially produced for direct casting. Evaporates with heat without leaving ash
Easy to Cast
Easy casting with investments such as Sherafine, Polyvest, Siladent, Bego, Nanovest or others
No Curing Required
No post UV curing is required after printing. Just wash and use
Smooth Surface
Specially produced for direct casting. Evaporates with heat without leaving ash
Easily Adjustable Stones
Specially designed for easy placement of stones on the printed pattern
Our Apps
Work Flow Chart
Özellikler
| Material Feature | Value | Standard |
|---|---|---|
| Tensile Strength | 10.4 MPa | ASTM D638 |
| Flexural Strength | 12.2 MPa | ASTM D790-02 |
| Bending Modulus | 277.3 MPa | ASTM D790-02 |
| Bending Modulus | 55.6 | ASTM D2240 |
| Density | 1.08 g/cm3 at 23oC | ASTM D1475 |
| Viscosity | 730 - 760 mPa.s at 23oC | DIN 53211-4 |
| Color | Light Blue |
Vitaresin Wax After Treatment
1- Washing
- After printing is complete, wash the part attached to the build plate with ethyl alcohol (>90%) or isopropyl alcohol (>90%) for 5 minutes.
- Ensure that the alcohol completely covers the part during washing.
- Do not over wash, it may cause distortion in the dimensions of the part.
2- Drying
- Use an air compressor to dry the washed part.
- Make sure the part is dry and the uncured resin is completely removed.
- If there is still uncured resin left on the part, wash with fresh alcohol and dry again.
3- Part Disassembly
- Remove the printed part from the build plate using an engraving tool. Be very careful not to damage your hand and the model.
- Store the Vitaresin Wax bottle in a dark and moisture-free place at room temperature (20-24 °C).
Always wear gloves during finishing!

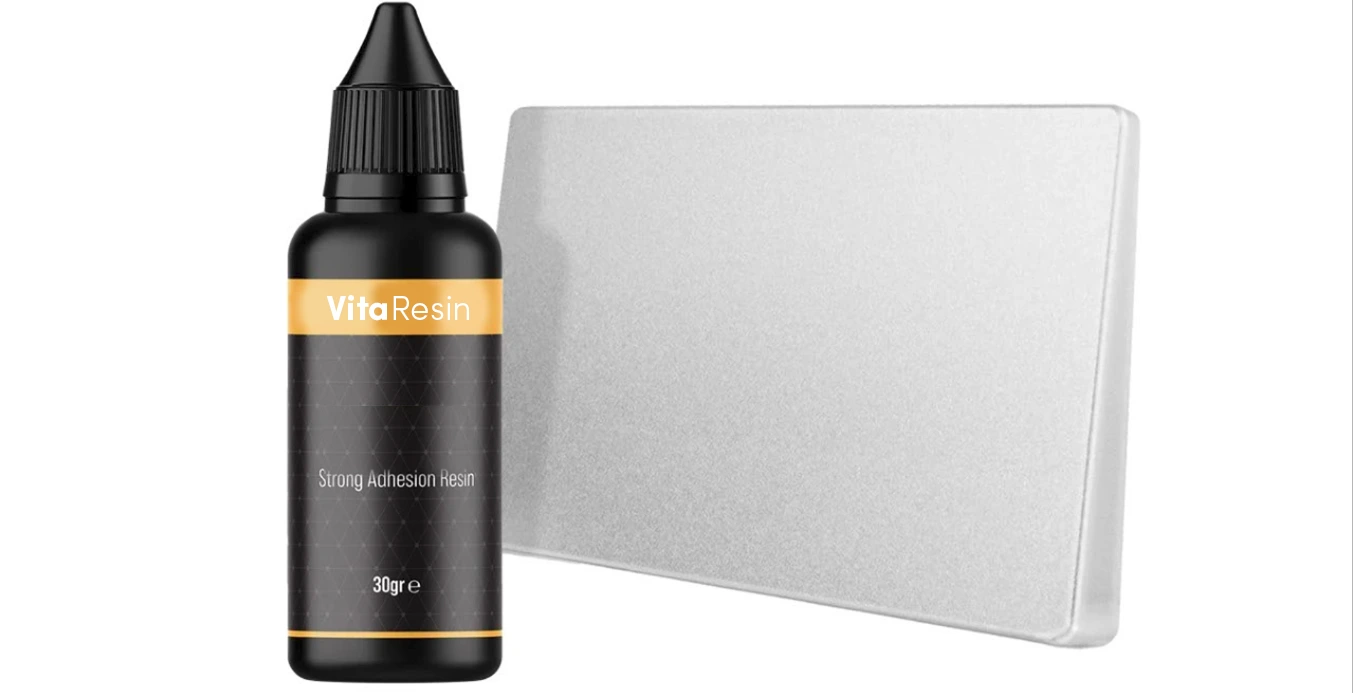

About Primer Resin Strong Adhesion
Vitaresin is a resin with very strong adhesion properties and designed to be used for all LCD, DLP and SLA technology printers with adhesion problems.
